Pallet Forklift Blade

Forks, tynes, or blades play a crucial role in the operation of forklifts. These components are essential for the support, lifting, and transportation of various loads within industrial, construction, and warehouse settings.

The design of forklift tynes ensures that they can accommodate different types of cargo with efficiency and safety. Whether you’re replacing worn-out tynes or upgrading for heavier loads, choosing the right forklift fork is critical to safe and productive operations.

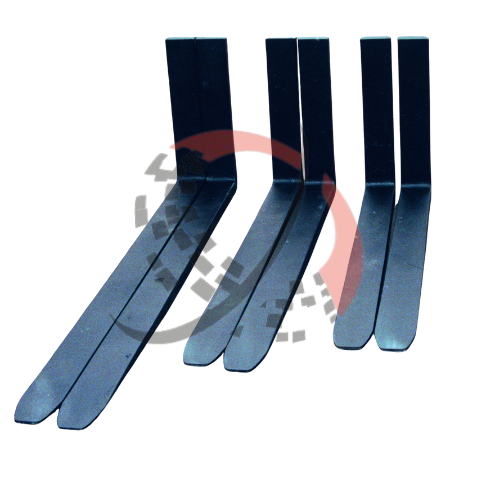

FORKLIFT TYNES

AVAILABLE SIZES

Mounting Class Weight Per Pair (kg) Width/Thickness/Length
2 105 100x40x1070
2 112 100x45x1220
2 110 120x40x1070
2 124 120x40x1220
2 150 120x40x1530
2 168 120x40x1820
2 200 120x40x2100
2 220 120x40x2400
3 125 125x45x1070
3 146 125x45x1200
3 180 125x45x1520
3 200 125x45x1820
3 250 125x50x2200
3 320 125x50x2400
3 346 150x50x2400
3 450 125x50x3000
3 500 150x50x3000
4 348 150x60x1220
4 368 150x60x1520
4 380 150x60x1820
4 400 150x60x2120
4 432 150x60x2400
4 348 150x60x3000
4 404 150x70x1820
4 452 150x70x2120
4 502 150x70x2400
Pallet Fork Crane
Quality Forklift Tynes
Pallet Fork Forklift Blades

How to Measure Forklift Tynes

Not sure which size you need? Here’s how to measure forklift tynes correctly:

  • Length

    Measure from the heel to the tip of the blade.

  • Width

    Measure across the surface of the tyne.

  • Thickness

    Measure from the top to the bottom of the blade.

  • Mounting Class

    Identify the carriage class (Class 2, 3, or 4) based on your forklift’s capacity and mast size.

FAQs About Forklift Tynes

  • A tyne (also called a tine or fork) is the metal prong used to lift, carry, and move loads.

  • Both are correct. “Tynes” is the preferred Australian spelling, while “tines” is used in American English.

  • Forklifts have both. Tynes (or forks) are for lifting, and tyres are for mobility.

  • They are typically made of high-tensile steel to withstand heavy loads and repeated lifting.

  • Measure the length, width, and thickness of the tynes and check the mounting class.

  • Use a tape measure for the length (heel to tip), width (across the blade), and thickness (top to bottom). Double-check the carriage class for compatibility.

  • It’s the mounting system used to attach forks. Classes 2, 3, and 4 are common, varying by lifting capacity and fork height.

  • Yes. Most forklifts have two axles—one in the front for driving and one in the rear for steering.

  • Typically four, but some compact or specialized models have three.

  • It’s the triangle formed by the front wheels and the pivot point of the rear axle—crucial for load balance and stability.

Why Choose Mandarin Imports for Forklift Tynes?

  • High-quality steel construction for durability

  • Wide range of mounting classes and sizes

  • Local support and fast delivery

  • Expert guidance and customer service

Ready to Upgrade or Replace Your Tynes?

Don’t risk safety or performance with the wrong equipment.
Enquire now or call (02) 9727 0753 to speak with our experts.
